Original P31.25 Yellow Color LED Traffic Signs Essential for Variable Message Signs
digital signage system Variable Message Signs P31.25 yellow color LED traffic signs
Product Description
We have specially designed Variable Message Signs LED display for traffic guidance.The variable message sign is one of the most important information distritution tools in a working transportation system.The LED traffic sign supports remote control via a central computer in a minitoring system.Our Variable Message Signs LED display can display a variety of graphics and text information to give notice to drivers about road conditions and directions,which saves drivers time and keeps traffic flowing smoothly .This LED road sign is great for long term application in a variety of harsh outdoor environment .
Besides Amber color ,you can also choose :Red color,double colors and full colors.
The high way LED dispay size can made according to your requirements.
The cabinet materails can also be Iron alloy or Aluminum alloy materials.
Parameters of outdoor full color and single color P31.25 LED modules of high way LED display
| Pixel pitch (mm) | dots density (dot/m2) | LED module resolution | LED module size(mm) | Resolution composition | Driving mode | Brightness (cd/m2) | Power (W/m2) | Scanning way | Remark |
| P 31.25 | 1024 | 8*8 Pixels | 250*250 | 4R2G2B | Constant current | 4800-5200 | 800W | Static scanning | (100 ° )Silan |
| 1024 | 8*8 Pixels | 250*250 | 4R2G2B | Constant current | 4800-5200 | 800W | Statoc scanning | (30°)Silan |
| 1024 | 8*8 Pixels | 250*250 | 4R | Constant current | 8000 | 300 | Static scanning | (30°)Silan |
| 1024 | 8*8 Pixels | 250*250 | 4Y | Constant current | 8000 | 300 | Static scanning | (30°)Silan |
| 1024 | 8*8 Pixels | 250*250 | 4R2G | Contant current | 12000 | 500 | Static Scanning | (30°)Silan |
Parameters of P31.25 Amber color high way LED display :
1.Physical Pitch(mm) 31.25 LEDs:4amber
2.resolution (pixel) 32X64
3.Physical Pixel Density(Pixel/m2) 1024
4.Pixel Configuration full color
5.LED wavelength 625+/-5nm
6.Brightness(cd/m2) ≤7000 cd/sq.m
7.Cabinet pixels 32×32
8.Cabinet Weight 65KG
9.Supply Voltage AC100~120V AC220~240V
10.Maximum Power Consumption(w/m2) 200(w/m2)
11.Average power Consumption(w/m2) 60(w/m2)
12.Operating Teperature -20~°C+50°C
13.Operating Humidity ≤95%
14.Horizontal Viewing Angle > 100°
15.Vertical Viewing Angle 70°
16. Gray scale : Display colors >4096;12 bit / color
17.Display colors 4A
18.IP Rating Front IP65
19.Viewing Distance (min,max) 25-500m
20.Regresh Rate(Frame per Second) 480HZ
21. Drive mode : Constant current; static scan
22.Blind LED lamp rate <0.00001 :
23.LED life( hours) 100,000
24.cabinet:mental or Aluminum frame can be choose

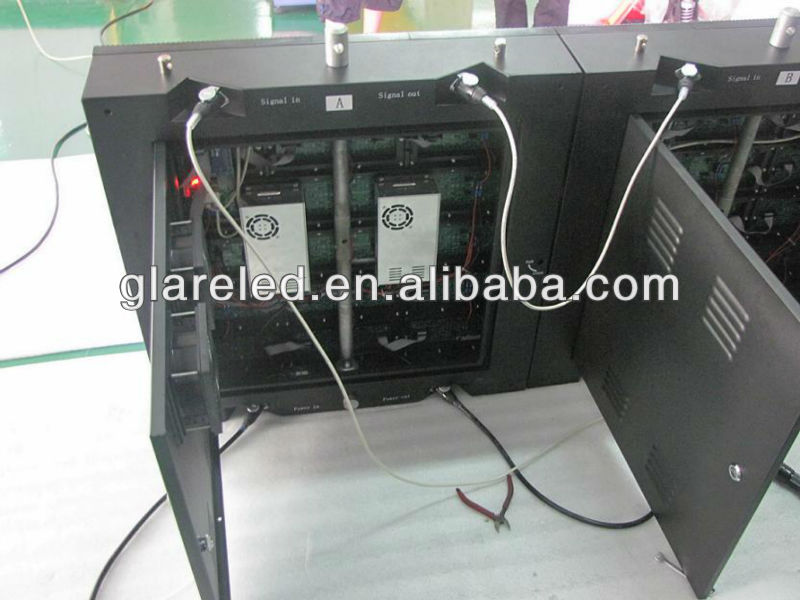

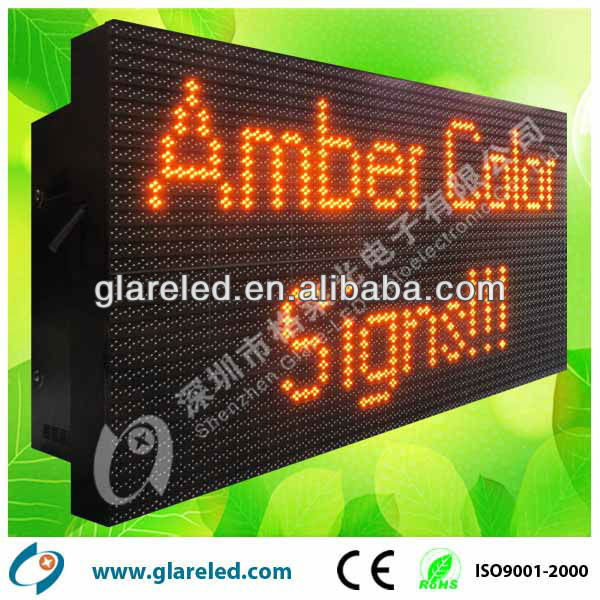

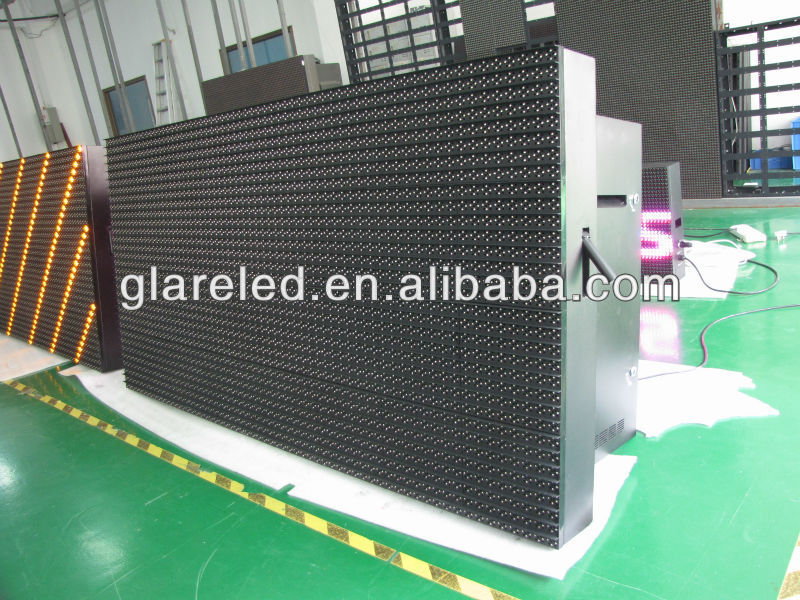

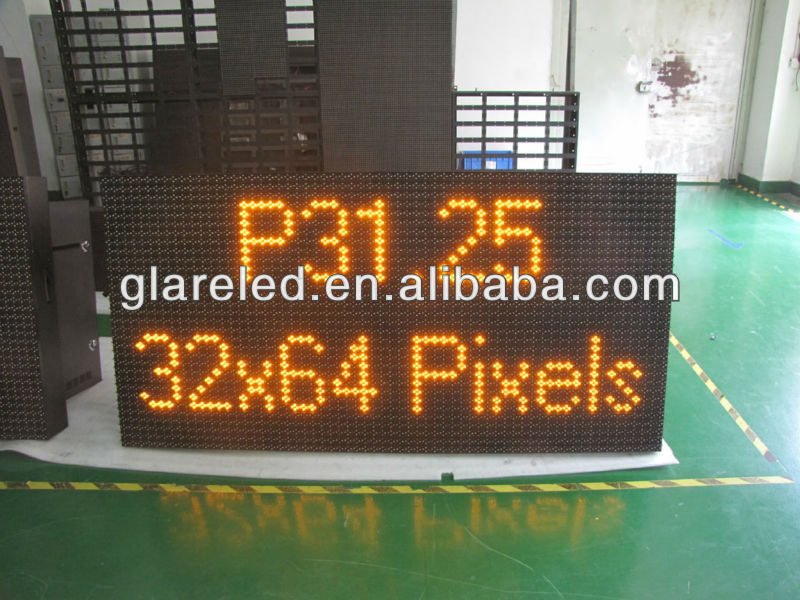

picture of product

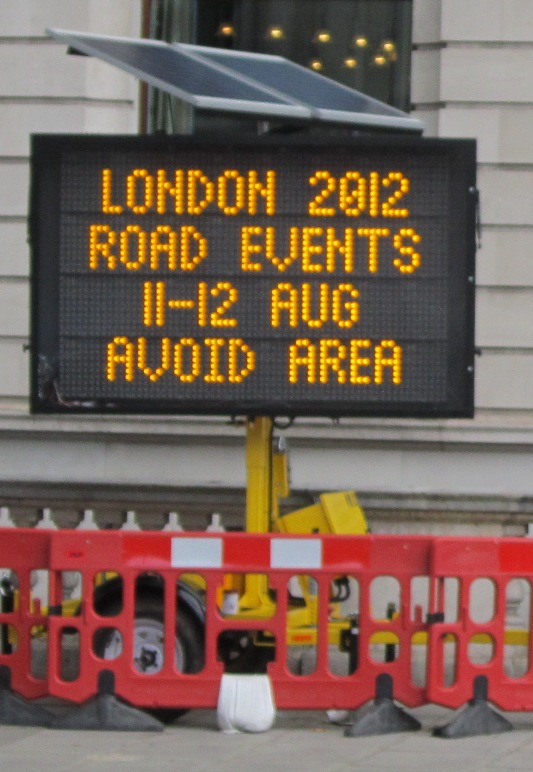

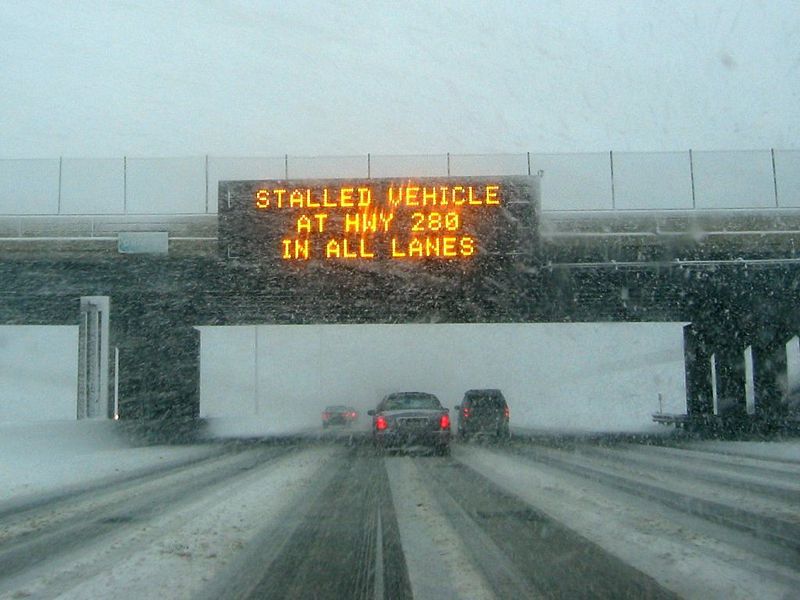

project for reference:
Packaging & Shipping
Standard Wooden Box Packing make this high way LED display in the best condition:
Our Services
Glare-LED provides user with high-quality LED products by adhering to the responsibility of "for customers, for employees, and for societ",
having "attentive, professional, and concentration" job manner, to provide customers with excellent products and first-class service.
Company Information
Shenzhen Glare-LED Optoelectronic Co.,Ltd is one of the high-tech enterprises, which specialized in R&D, designing,producing,marketing and engineering of LED display as well as the related LED products.
With the industry's senior human resources and technological advantages of the elite, combined with its own "integrity first, quality first, service first" business philosophy,as well as our rigorous attitude to the products, we has become a well-known integrated LED products manufacturing company at home and abroad.
FAQ
What does this limited warranty cover?
This Limited Warranty applies to new high way led display for normal use. Glare LED display warrants that a covered product is free from defects in materials and workmanship, with the exceptions stated below.
How long does limited warranty coverage last?
This limited warranty lasts for 1 years. And basic spare parts are available.
What the certificates outdoor led LED display passed?
This high way LED display has passed the certificates like CE, RoHS, FCC, etc.
